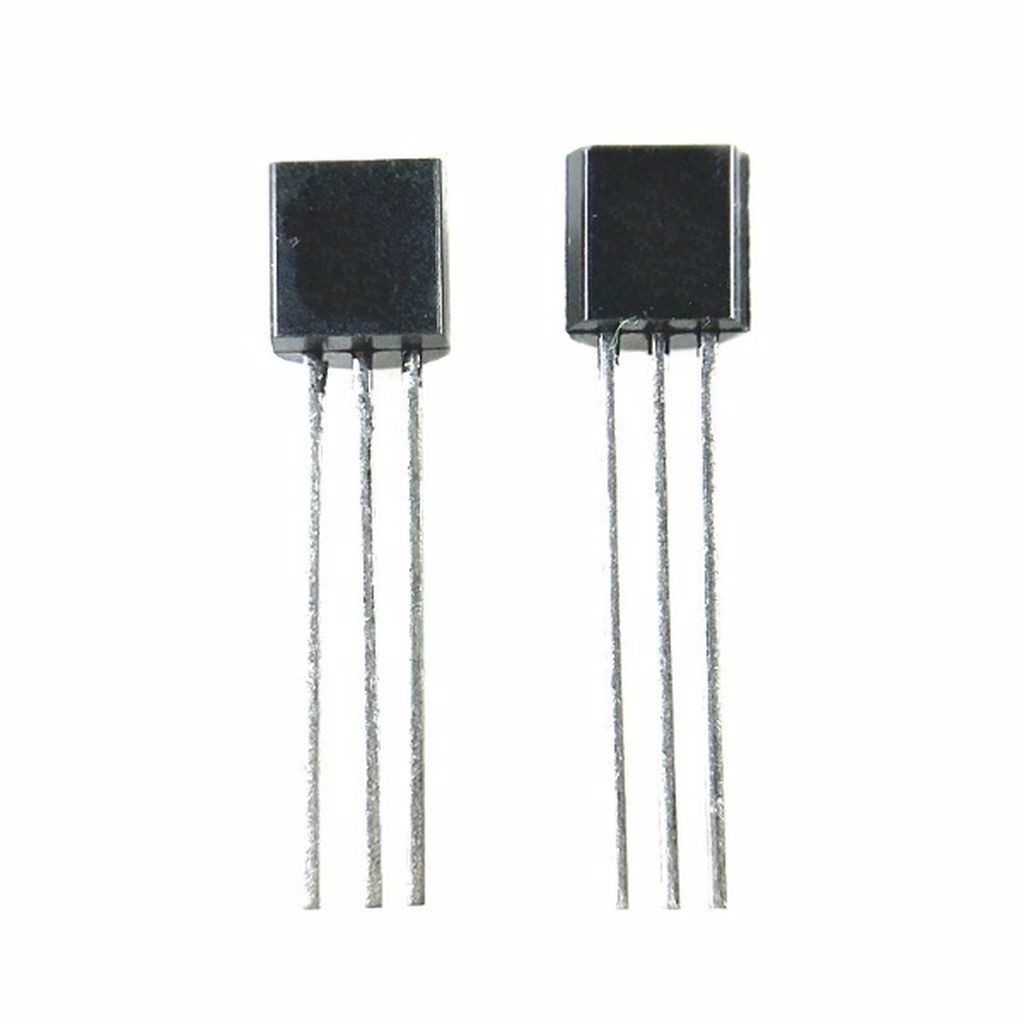

BC547-B-TA/P    TO-92   100mA 45V   NPN TRANSISTOR

BC547BTA

Type Designator: BC547BTA

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.5 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 300 MHz

Collector Capacitance (Cc): 3.5 pF

Forward Current Transfer Ratio (hFE), MIN: 110

Noise Figure, dB: -

Package: to92
